The Lumix G Vario HD 14-140mm/F4.0-5.8 ASPH./MEGA O.I.S. as a new member of the Lumix G Micro System. The new Lumix G lens incorporates an inner focus direct-drive linear motor for focusing, which enables smooth, silent operation of its fast and accurate contrast AF system, for use in both photo and movie recording. Adopting the Micro Four Thirds System standard, the new lens offers a wide and long zoom range of 14-140mm (35mm camera equivalent: 28-280mm) to suit a large variety of shooting situations, from scenery to portraits or telephoto shots, in a surprisingly compact and lightweight body.
The new lens system uses four aspherical lenses and two ED lenses to achieve dramatic downsizing despite its powerful 10x optical zoom, while minimizing distortion and chromatic aberration. Panasonic's Mega O.I.S. (Optical Image Stabilizer) suppresses the blurring that is commonly caused by hand-shake, making it easy to shoot clear shots even at telephoto range or in dimly lit places without using a tripod.
When mounted on the DMC-GH1 Lumix G Micro System Camera, the new lens allows use of the advanced contrast AF system, which includes a Face Recognition function, for more convenient, more enjoyable shooting. Seven blades give the aperture a rounded shape that produces an attractively smooth effect in out-of-focus areas when shooting at larger aperture settings. The new Lumix G Vario HD 14-140mm/F4.0-5.8 ASPH./MEGA O.I.S. lens also features a highly reliable metal mount, and uses multi-coated lens elements that minimize ghosts and flare to further enhance its optical performance.
Lens Construction Technical Specifications - Lens Construction: 17 elements in 13 groups (4 Aspherical lenses, 2 ED lenses)
- Mount: Micro Four Thirds mount
- Optical Image Stabilizer: YES
- Focal Length: f=14 mm to 140 mm (35 mm camera equivalent 28 mm to 280 mm)
- Aperture Type: 7 diaphragm blades / Circular aperture diaphragm
- Aperture: F4.0 (Wide) - F5.8 (Tele)
- Minimum Aperture: F22
- Closest Focusing Distance: 0.50 m / 1.64 ft at all focal lengths
- Maximum magnification: Approx. 0.2x / 0.4x (35 mm camera equivalent)
- Diagonal Angle of View: 75° (W) - 8.8° (T)
- Filter Size: f62 mm / 2.44 in
- Max. Diameter: f70 mm / 2.76 in
- Overall Length: Approx. 84 mm / 3.31 in (from the tip of the lens to the base side of the lens mount)
- Weight Approx. 460 g / 16.23 oz

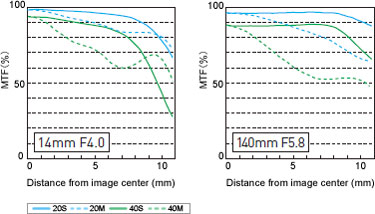

MTF Chart
